ROTARY

ICE CREAM CONE FILLING MACHINE
Model : IC30 PS Cone

Automatic High Speed Cone Filling - Sealing Machine for products like ice-creams.

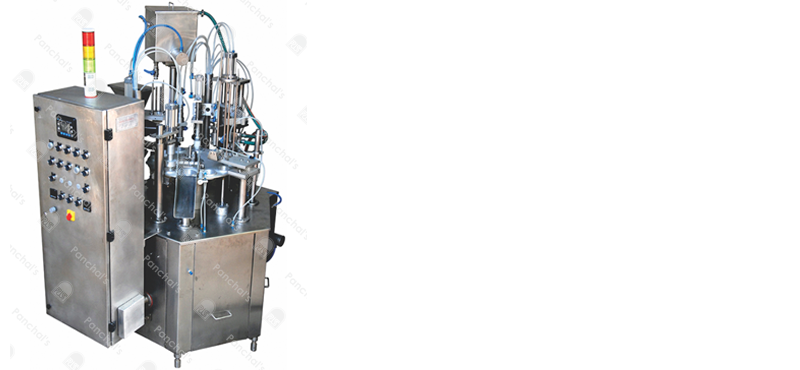

ROTARY ICE CREAM CONE FILLING MACHINE

Model : IC30 PS Cone

Backed by rich industry experience, Our Rotary driven automatic Ice cream Cone filling machine, Single Head Filling, Single Track with Single indexing ( Ratchet Type ) gives accuracy, speed and flexibility when handling cream, powders and granules. Its stainless-steel construction, easy-to-remove tooling and hopper allow for simple cleaning and maintenance with latest techniques in compliance with set industry standards.

Our Rotary Type Filling Machines for Ice-Cream Cone, Curd, Yogurt, Lassi, Ghee, Shrikhand, Chees, Ketchup etc.

Features

  • PLC Controlled Machines
  • Servo Drive Indexing System
  • Accurate filling at promised speed
  • Upto 3000 Fills Per Hour.

Basic Functions

  • Automatic Cone Release
  • Sensing
  • Chocolate spray
  • Filling
  • Chocolate topping



  • Dry nut topping
  • Automatic Lid Placing
  • Cone crimping
  • Ejecting
*Customisations for additional stations are possible.

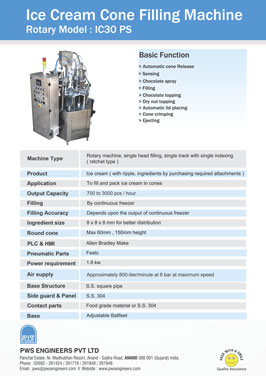

Specifications

  • Machine Type : Rotary machine, single head filling, single track with single indexing ( ratchet type )

  • Product : Ice cream ( 2 in 1 ice cream, with ripple, with ingredients by purchasing required attachments )

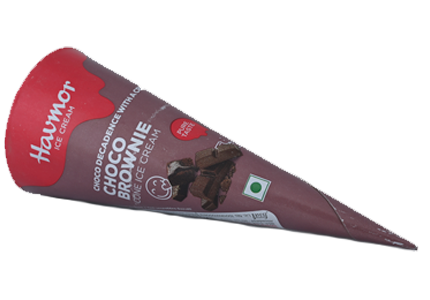

  • Application : To fill and pack ice cream in cones
  • Output Capacity : 700 to 3000 pcs / hour
  • Filling : By continuous freezer
  • Filling Accuracy : Depends on the output of continuous freezer
  • Ingredient size : 8 x 8 x 8 mm for better distribution
  • Round cone : Max 60mm Æ, 150mm height
  • PLC : Allen Bradley Make



  • HMI : Allen Bradley Make
  • Pneumatic Parts : Festo
  • Power requirement : 1.8 kw
  • Air supply : Approximately 800-liter/minute at 6 bar at maximum speed
  • Base Structure : S.S. square pipe
  • Side guard : S.S. 304
  • Panel : S.S 304
  • Contact parts : Food grade material or S.S. 304
  • Base : Adjustable Ball feet
