Ingredient Fruit Feeder

Model: IFF 100 to 1200




Ingredient Fruit Feeder

Model: IFF 100 to 1200

The fruit feeder machine injects small pieces of ingredients, such as nuts, chocolate chips, fresh or candied fruits, into the ice cream.

Give Attractive Striking look with delicious and tasty to Ice Cream. With different elements like Chocolates, nuts, fruit, dried fruits, candies, cookies, caramel, chocolate chips, raisins and fudge are just a small selection of the many types of ingredients adequately sized dosage can be added to ice cream with the facilitate of ingredient feeders Machine . Fruit Feeder is a compact machine with controlled addition of ingredients into a continuous flow of ice cream.

Features

  • Easy to access with PLC panel.
  • Injects Nuts, seeds or small bits.
  • Made from stainless steel.

Basic Functions

  • Feeding of ingredients from hopper to rotor.
  • Injection of ingredient to ice cream in rotor body.
  • Evenly mixing of ingredients with ice cream in mixer.
  • Ice cream output with mixed ingredients.

Specifications

  • Machine Type : Rotor Blade Type, with 3 separate variable frequency drives for feeder, rotor and mixer.

  • Application : To add Dry / Wet Ingredients to the ice cream flow.

  • Output Capacity : Varies from 100 lph to 2000 lph based on selected model.

  • Ice cream flow : By continuous freezer.
  • Variable Frequency Drives : Allen Bradley Make.
  • Power requirements : 1.5 kw.





  • Electrical Supply : 3 phase with earthing and neutral.
  • Base Structure : S.S. Square Pipe.
  • Side Guard : S.S. 304.
  • Panel : S.S. 304.
  • Contact Parts : Food grade material or S.S. 304.
  • Base : 2 lockable + 2 non lockable castor wheels.


Media

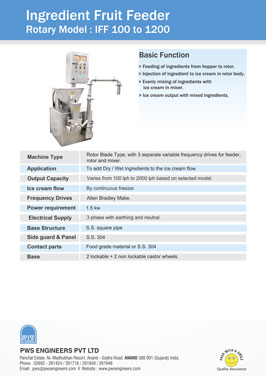

Download PDF to Print
