ICE CREAM CUPS & CONE FILLING
SEMI AUTOMATIC MACHINE

Model : SCF 20 P

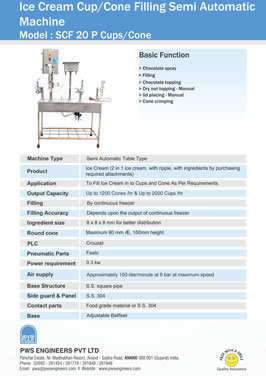

ICE CREAM CUPS & CONE FILLING SEMI AUTOMATIC MACHINE

Model : SCF 20 P

Backed by rich industry experience, Our Servo driven Semi automatic Ice cream Cup & Cone filling machine gives accuracy, speed and flexibility when handling cream, powders and granules. Its stainless-steel construction, easy-to-remove tooling and hopper allow for simple cleaning and maintenance with latest techniques in compliance with set industry standards.

Our Rotary Type Filling Machines for Ice-Cream Cups & Cones, Curd, Yogurt, Lassi, Ghee, Shrikhand, Cheese, Ketchup etc.

Features

  • PLC Controlled Machines
  • Servo Drive Indexing System
  • Accurate filling at promised speed
  • Can also Fill Fancy variety of Ice Cream

Basic Functions

  • Chocolate spray
  • Filling
  • Chocolate topping



  • Dry nut topping - manual
  • Lid Placing - manual
  • Cone crimping
*Customisations for additional stations are possible.

Specifications

  • Machine Type : Semi Automatic Table Type

  • Product : Ice Cream (2 in 1 ice cream, with ripple, with ingredients by purchasing required attachments)

  • Application : To Fill Ice Cream in to Cups and Cone As Per Requirements.
  • Output Capacity : Up to 1200 Cones /hr & Up to 2000 Cups /hr
  • Filling : By continuous freezer
  • Filling Accuracy : Depends on the output of continuous freezer
  • Ingredient size : 8 x 8 x 8 mm for better distribution
  • Round cup : Nil
  • Round cone : Maximum 60 mm Æ, 150mm height



  • PLC : Crouzet
  • Pneumatic Parts : Festo
  • Power requirement : 0.3 kw
  • Air supply : Approximately 100-liter/minute at 6 bar at maximum speed
  • Base Structure : S.S. square pipe
  • Side guard : S.S. 304
  • Panel : S.S 304
  • Contact parts : Food grade material or S.S. 304
  • Base : Adjustable Ballfeet
