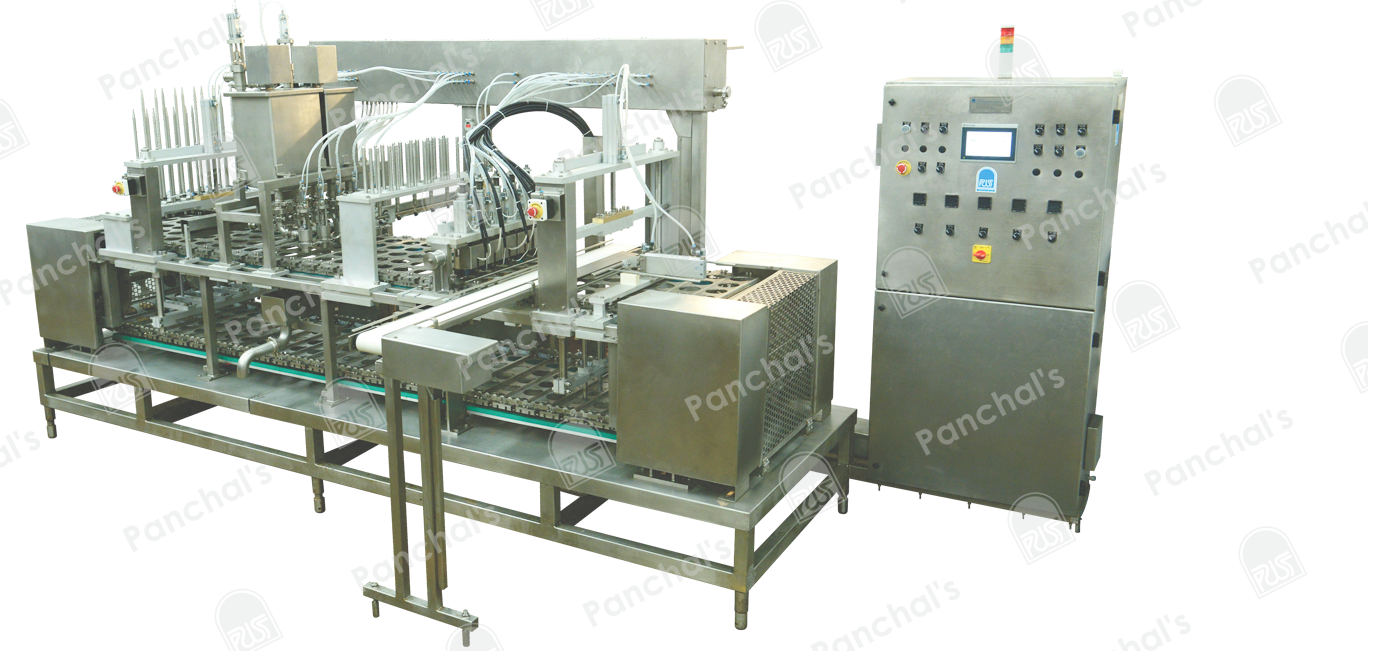

Curd Cup Filling Linear Machine

Model: LF5




Curd Cup Filling Linear Machine

Model: LF5

We PWS brings you automatic rotary type cup fill and sealing machine appropriate for packing Curd, Dahi, Yogurt, Lassi ,Juice, Honey,Water, Beverages, Butter milk etc. This Machine Comes with completely automated solution for diverse food processing applications including yogurt, dips, humus, cheese, Honey, fruit paste, cup water, milk, etc. This machine is suitable for any sealable cups with heat sealable laminates / pre cut aluminium foil.

Features

  • PLC controlled operations and it is a fully automatic machine.
  • All contact parts are of SS 304 food grade material
  • Single & Double track models
  • Suitable for films from reel or pre-cut lids.

Basic Functions

  • Automatic cup Release
  • Sensing
  • Filling



  • Automatic Foil / Lid Placing
  • Heat Sealing
  • Ejecting
*Customisations for additional stations are possible

Specifications

  • Machine Type: Fully Automatic , Linear Machine , 5 Head Type , single indexing ( Servo Driven ), with ethernet controlled Solenoid valve system

  • Product: Curd / Lassi ( Freely flowable )
  • Application: To fill and seal freely flowable products in cups
  • output capacity : 6000 pcs/hr fix speed all sizes
  • Filling : By gravity
  • Filling Volume: 50 to 500 gm cups
  • Filling Accuracy: +- 1% of filling volume
  • Round cup diameter: Maximum 95-mm
  • Round cup height: Maximum 125-mm



  • PLC : Allen Bradley Make
  • HMI : Allen Bradley Make
  • Pneumatic Parts : Festo
  • Power requirement : 6 kw
  • Air Supply : Approximately 2000-liter/min at 7 bar Working Pressure
  • Base Structure : S.S. square pipe
  • Side guard : S.S. 304
  • Panel : S.S. 304
  • Contact parts : Food grade material or S.S. 304
  • Base : Adjustable Ballfeet


Media

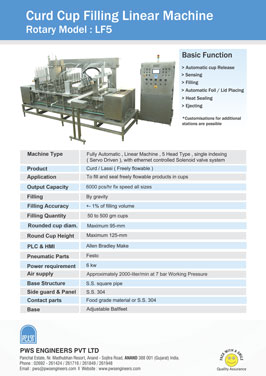

Download PDF to Print
