Our Linear Tub Filling Machine can filled Ingredients like nuts, chocolate chips and syrups like chocolate and other flavours mix with variety of ice creams in Sundae Tub gives attractive flower looks..
- Home
- Product

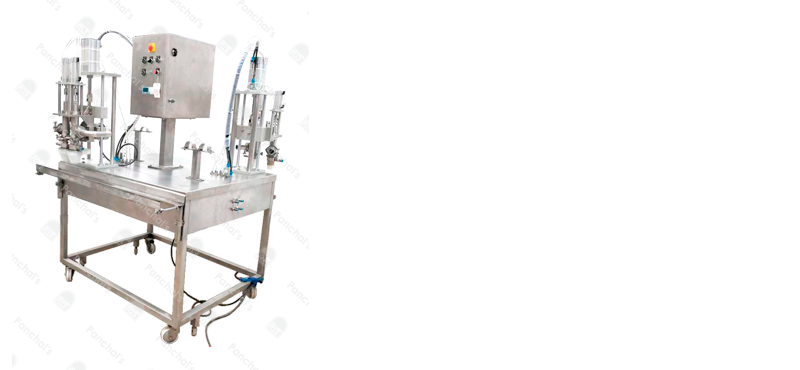

Ice cream Tub Filling Semi Automatic Machine
Model : STFP
Automatic Filler for multi flower sundae ice cream in plastic tubs.
Ice cream Tub Filling Semi Automatic Machine
Model : STFP
Features
-
PLC controlled operations and it is a fully automatic machine.
- All contact parts are of SS 304 food grade material
- Single & Double track models
- Suitable for films from reel or pre-cut lids.
Basic Functions
- Chocolate spray
- Filling
- Chocolate topping
- Dry nut topping - Manual
- Lid Placing - Manual
- Cone crimping
*Customisations for additional stations are possible.

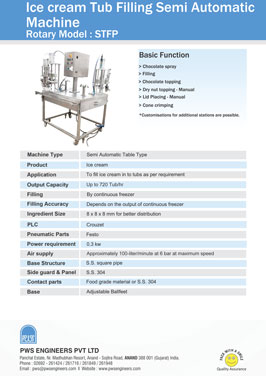

Specifications
- Machine Type: Semi Automatic Table Type
-
Product: Ice cream (2 in 1 Ice cream , with ripple , with ingredients by purchasing required attachments )
- Application: To fill ice cream in to tubs as per requirement
- Output capacity : Up to 1200 cones/hr & Up to 2000 cups/hr
- Filling : By Continuous Freezer
- Filling Accuracy: Depends on the output of continuous freezer
- Ingredient Size : 8 x 8 x 8 mm for better distribution
- Round Cup : Nil
- Round cone : Maximum 60mm Æ, 150mm height
- PLC : Crouzet
- Pneumatic Parts : Festo
- Power requirement : 0.3 kw
- Air Supply : Approximately 100-liter/minute at 6 bar at maximum speed
- Base Structure : S.S. square pipe
- Side guard : S.S. 304
- Panel : S.S. 304
- Contact parts : Food grade material or S.S. 304
- Base : Adjustable Ballfeet
